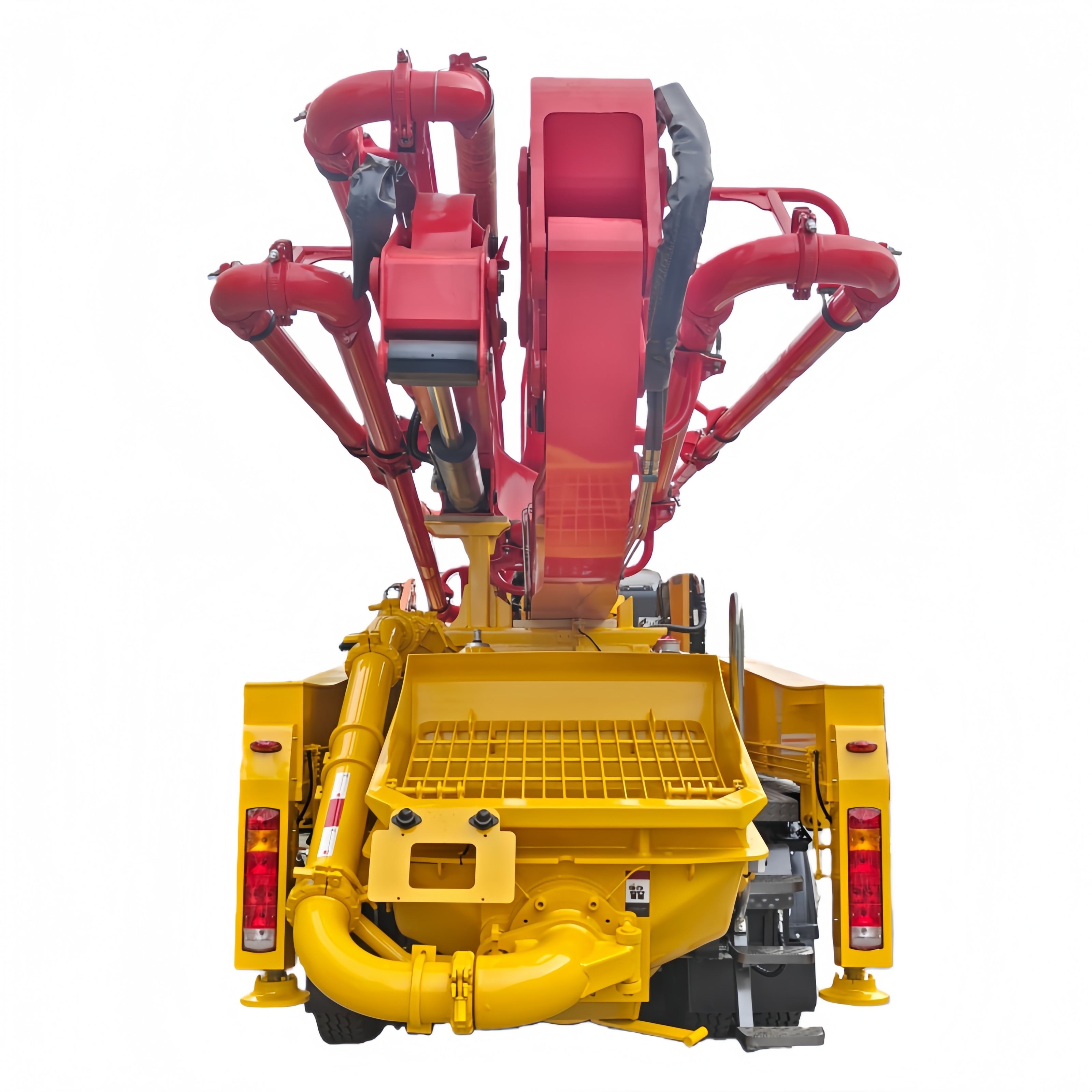

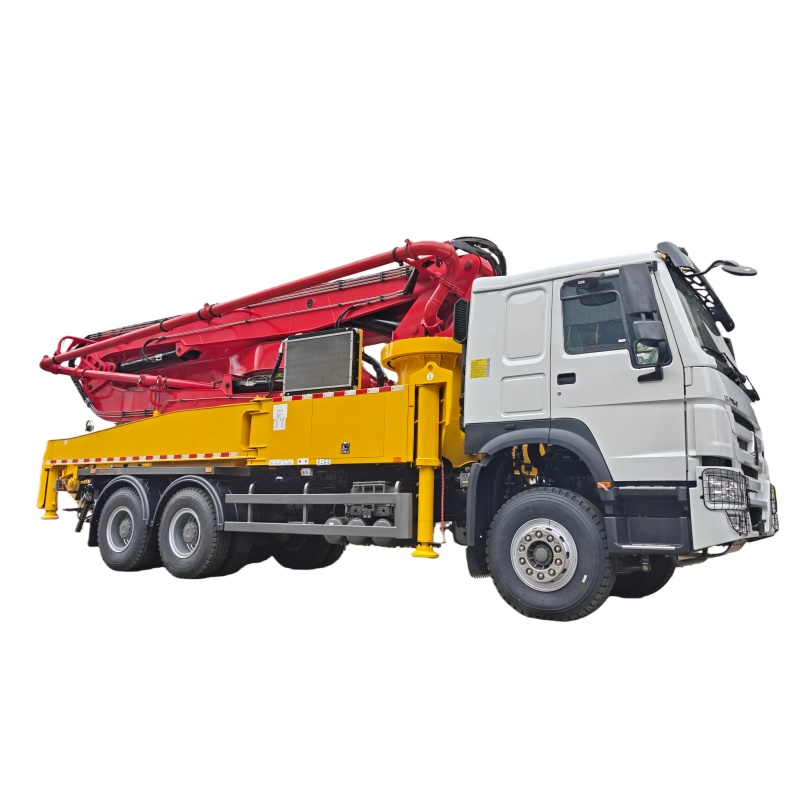

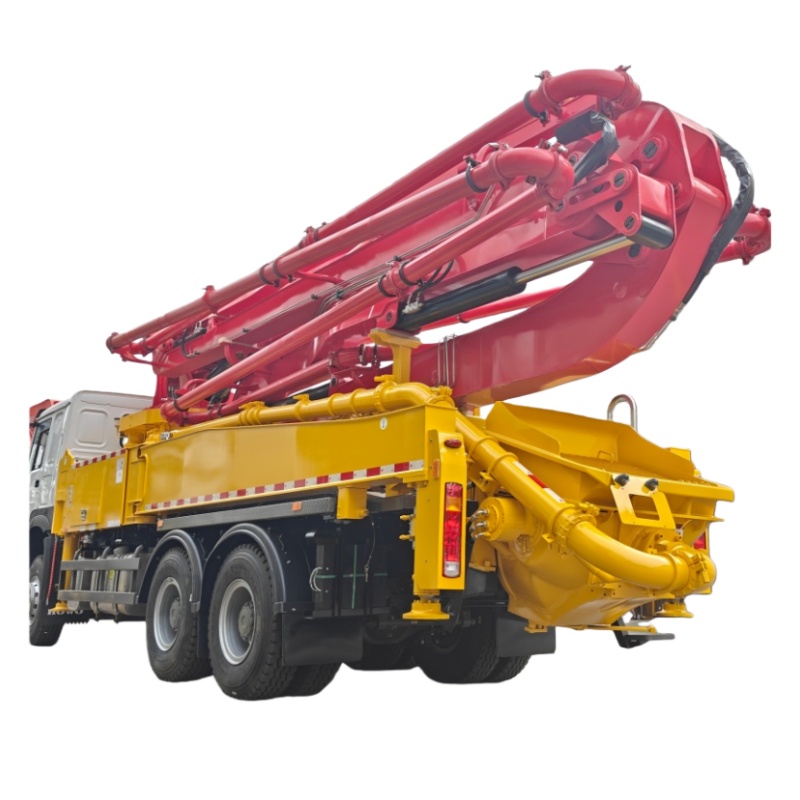

25M Concrete Pump Truck
• Chassis
Chassis Jiefang/Foton
Emission Standard National VI
Engine 220
Horsepower
Wheelbase 4800
Maximum Travel 89
Speed
• Boom System
Boom Vertical 24.2m
Height
Boom Horizontal 20.6m
Placement Radius
Placement Depth 13.8m
Each Boom Section 90°/180°
Rotation Angle /230°
/245°
Boom Control Variable Pump
Mode
Slewing Tower Rotation 470°
Angle
Front Outrigger 5842mm
Span
Rear Outrigger 4253mm
Span
Front and Rear 6259mm
 Outriggers
Longitudinal Distance
Outriggers X-H
Opening Method
Delivery Pipe 3000mm
Length
Boom 5.4m
Minimum Opening
Height
Concrete 125mm
Conveying Pipe
Diameter
• Electrical Control System
Control Power Supply 24v
Control Module Relay
Operating Voltage 24
Intermediate Siemens
Electrical Brand
Wireless HBC
Remote Control
Brand
• Hydraulic Transmission System
Hydraulic System Open
Type
System 31.5Mpa
Working Pressure
Main Hydraulic Putsch/
Hydraulic Pump Brand Rexroth
Main Hydraulic Pump A11VO190
Model
Main Hydraulic Pump 190
Displacement
Suction and Return Liming Hydraulic
 Oil
Filter Element Brand
Boom Hawe/Norgren
Multi-way Valve
Brand
Boom Italian
Balancing Valve
Brand
Outriggers Italian
Multi-way Valve Taiwan Oil Power
Brand
Hydraulic Cylinder Parker (USA)
Seal Brand
Hydraulic 400
Oil Tank Capacity
Hydraulic Oil Air Cooling
Cooling Method
Main Hydraulic Cylinder Domestic
Well-known Brand
Transfer Case Jie Brand
Brand Sabo
Zhuchi
Hose Fittings Eaton
Brand
• Dimensions & Weight
Overall Length 9538mm
Overall Width 2350mm
Overall Height 3375mm
Vehicle Weight 18.3T
Superstructure Weight 12.5T
• Pumping System
Concrete S Valve
Distributor Valve
Type
Concrete Domestic
Piston Brand
Pumping Cylinder 140/80
Specifications
Maximum 8
Concrete
Outlet Pressure
Mpa
Theoretical Maximum 105
Pumping Volume
m 3/h
Delivery Cylinder 230*1450
Inner Diameter/Stroke
Theoretical Maximum
Number of Times
Hopper Capacity 0.8m³
Pumping 160-220
Concrete
Slump
Allowable Maximum 40mm
Aggregate Size
Lubrication Method Centralized
Lubrication
